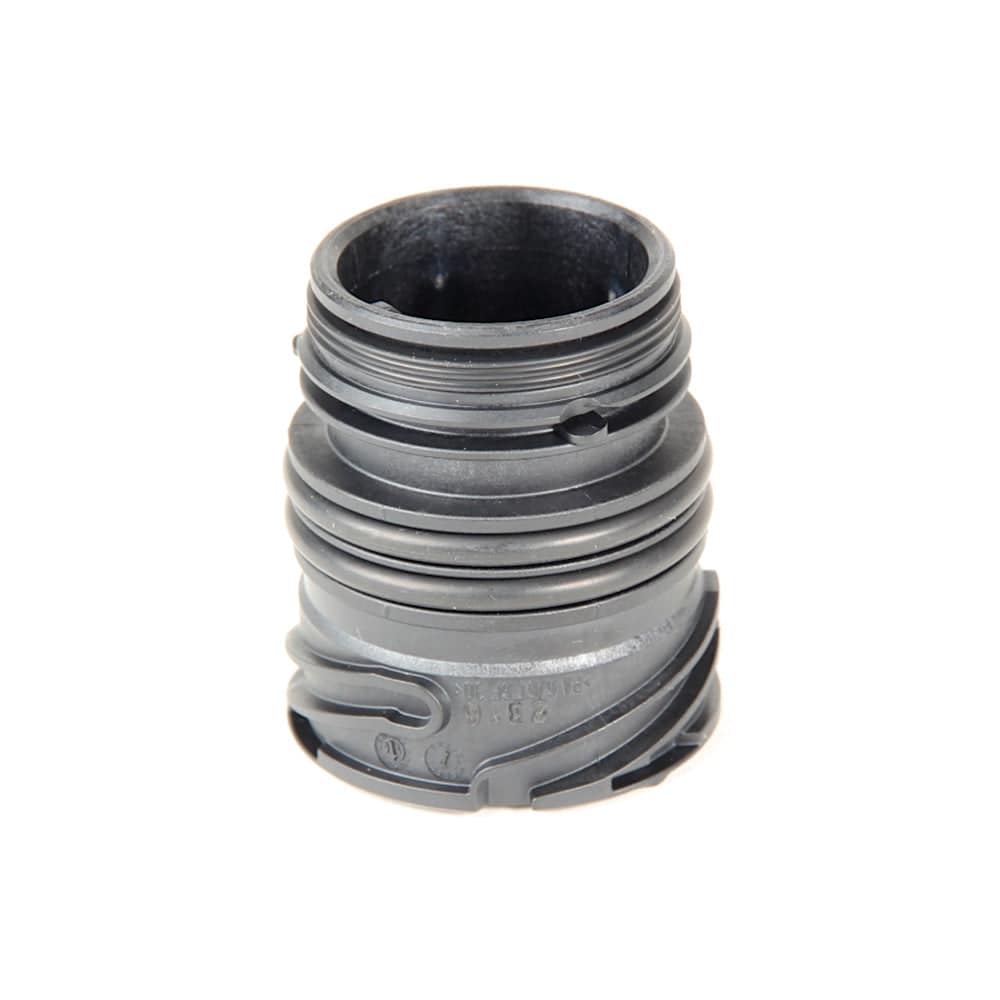

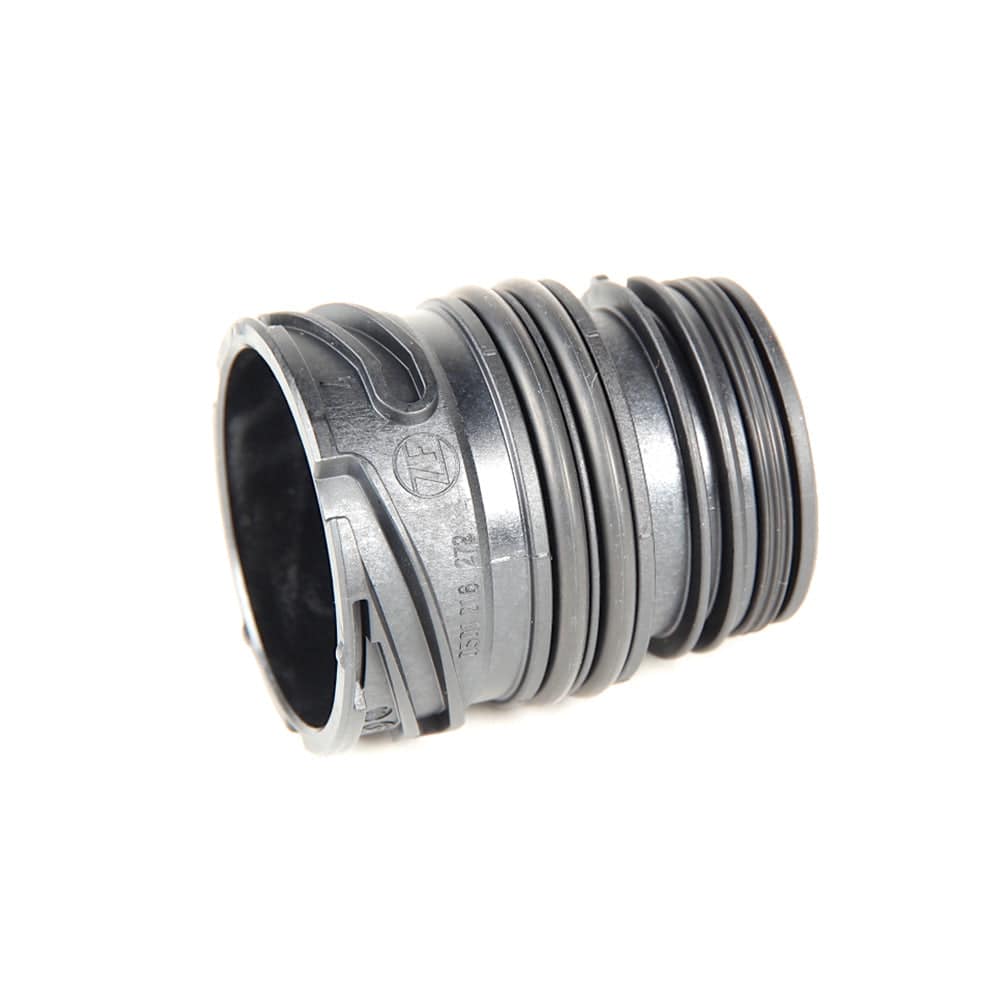

Automatic Transmission Sealing Sleeve
Replacement automatic transmission sealing sleeve, connecting the mechatronics to the gearbox.
$30Priced Individually — incl. GST
In stock at our Melbourne warehouse
Checking dispatch…
Check the fitment note above before ordering — it saves a return.
♡ Save to wishlistDescription
A common weak point on modern BMWs, this sleeve creates a seal between the mechatronics unit and the transmission. Over time this sleeve can warp due to the immense heat from the transmission, creating transmission fluid leaks on the floor of your garage. If too much fluid escapes from your transmission, it can cause some very expensive problems. A relatively straight-forward job, this replacement sealing sleeve comes from BMW transmission supplier, ZF.
Helpful tips
The pins can be sensitive to static electricity, so wear rubber gloves and try to avoid touching them. As the pins are also quite fragile, be careful of the locating tab on the sleeve during removal and installation.
Vehicle not set
to confirm fit and see fitment details.
Confirmed fit
Fits your
Fits your
Check before ordering:
One detail to check, depending on your body type
Hatch07.04 to 06.11
Hatch07.04 to 06.11
Hatch07.04 to 06.11
Hatch07.04 to 06.11
Hatch07.04 to 06.11
Hatch03.05 to 06.11
Hatch03.07 to 06.11
Coupe09.07 to 08.13
Convertible09.07 to 10.13
Coupe09.07 to 08.13
Convertible09.07 to 08.13
All01.05 to 12.11
All01.05 to 12.11
All01.05 to 02.12
All01.05 to 10.13
All01.05 to 08.06
All09.06 to 10.13
All03.06 to 10.13
Sedan09.07 to 03.10
Touring09.07 to 03.10
Sedan09.03 to 03.10
Sedan09.03 to 03.10
Touring09.03 to 03.10
Sedan07.03 to 03.10
Sedan07.05 to 03.10
Sedan09.03 to 06.05
Sedan07.05 to 03.10
All01.04 to 08.05
All07.05 to 07.10
Sedan11.01 to 02.05
Sedan06.04 to 07.08
Sedan11.01 to 02.05
Sedan06.04 to 07.08
Sedan02.02 to 07.08
Sedan11.01 to 02.05
Sedan09.04 to 07.08
Sedan11.01 to 02.05
Sedan06.04 to 07.08
Sedan02.02 to 07.08
All01.06 to 08.08
All01.06 to 08.08
SUV10.04 to 08.10
SUV01.04 to 08.10
SUV05.00 to 09.06
SUV05.01 to 09.06
SUV05.00 to 09.06
SUV04.04 to 09.06
SUV09.07 to 02.09
SUV02.07 to 09.08
SUV02.07 to 09.08
SUV09.10 to 06.13
SAC09.10 to 06.14
SAC09.08 to 06.14
SAC09.08 to 06.14
SUV10.09 to 06.15
SUVFrom 09.10
SUVFrom 10.09
SUVFrom 10.09
SUVFrom 01.10
SUVFrom 04.11
Convertible09.08 to 10.13
Convertible09.07 to 08.13
Matched to Australian-delivered models from the factory. Aftermarket modifications and grey imports may differ.
How we work
Matched to Australian-delivered modelsNot a global catalogue. Every fitment is mapped to AU specifications.
One price, for everyoneOur price is our best and only price. No seasonal sales, no discount codes.
Carefully curated rangeNot every part we can find — only ones we'd fit ourselves.
OE and OEM-quality suppliersThe same manufacturers that supply the European factories.
Specifications
- Manufacturer
- ZF
- Required per car
- 1
Part numbers
- OEM
- 24347588725
Part numbers are provided for reference only. For correct compatibility to your vehicle, please follow our fitment advice.
Fitments
11 chassis groups · 62 fitments
Browsing all compatible vehicles — to confirm fit.
| Model | Body | Build | Fitment notes |
|---|---|---|---|
| BMW 1 Series E8x (2004 - 2013) 116i Hatch | Hatch | 07.04 to 06.11 | For ZF automatic gearbox GA6HP19Z |
| BMW 1 Series E8x (2004 - 2013) 118d Hatch | Hatch | 07.04 to 06.11 | For ZF automatic gearbox GA6HP19Z |
| BMW 1 Series E8x (2004 - 2013) 118i Hatch | Hatch | 07.04 to 06.11 | For ZF automatic gearbox GA6HP19Z |
| BMW 1 Series E8x (2004 - 2013) 120i Hatch | Hatch | 07.04 to 06.11 | For ZF automatic gearbox GA6HP19Z |
| BMW 1 Series E8x (2004 - 2013) 120d Hatch | Hatch | 07.04 to 06.11 | For ZF automatic gearbox GA6HP19Z |
| BMW 1 Series E8x (2004 - 2013) 130i Hatch | Hatch | 03.05 to 06.11 | For ZF automatic gearbox GA6HP19Z |
| BMW 1 Series E8x (2004 - 2013) 123d Hatch | Hatch | 03.07 to 06.11 | For ZF automatic gearbox GA6HP19Z |
| BMW 1 Series E8x (2004 - 2013) 125i Coupe | Coupe | 09.07 to 08.13 | For ZF automatic gearbox GA6HP19Z |
| BMW 1 Series E8x (2004 - 2013) 125i Convertible | Convertible | 09.07 to 10.13 | For ZF automatic gearbox GA6HP19Z |
| BMW 1 Series E8x (2004 - 2013) 135i Coupe | Coupe | 09.07 to 08.13 | For ZF automatic gearbox GA6HP19Z |
| BMW 1 Series E8x (2004 - 2013) 135i Convertible | Convertible | 09.07 to 08.13 | For ZF automatic gearbox GA6HP19Z |
| BMW 1 Series E8x (2004 - 2013) 118d Convertible | Convertible | 09.08 to 10.13 | For ZF automatic gearbox GA6HP19Z |
| BMW 1 Series E8x (2004 - 2013) 120i Convertible | Convertible | 09.07 to 08.13 | For ZF automatic gearbox GA6HP19Z |
| Model | Body | Build | Fitment notes |
|---|---|---|---|
| BMW 3 Series E9x (2005 - 2013) 320i All | All | 01.05 to 12.11 | For ZF automatic gearbox GA6HP19Z |
| BMW 3 Series E9x (2005 - 2013) 320d All | All | 01.05 to 12.11 | For ZF automatic gearbox GA6HP19Z |
| BMW 3 Series E9x (2005 - 2013) 323i All | All | 01.05 to 02.12 | For ZF automatic gearbox GA6HP19Z |
| BMW 3 Series E9x (2005 - 2013) 325i All | All | 01.05 to 10.13 | For ZF automatic gearbox GA6HP19Z |
| BMW 3 Series E9x (2005 - 2013) 330i All | All | 01.05 to 08.06 | For ZF automatic gearbox GA6HP19Z |
| BMW 3 Series E9x (2005 - 2013) 335i All | All | 09.06 to 10.13 | For ZF automatic gearbox GA6HP19Z |
| BMW 3 Series E9x (2005 - 2013) 330d All | All | 03.06 to 10.13 | For ZF automatic gearbox GA6HP19Z |
| Model | Body | Build | Fitment notes |
|---|---|---|---|
| BMW 5 Series E60/E61 (2003 - 2010) 520d Sedan | Sedan | 09.07 to 03.10 | For ZF automatic gearbox GA6HP19Z |
| BMW 5 Series E60/E61 (2003 - 2010) 520d Touring | Touring | 09.07 to 03.10 | For ZF automatic gearbox GA6HP19Z |
| BMW 5 Series E60/E61 (2003 - 2010) 525i Sedan | Sedan | 09.03 to 03.10 | For ZF automatic gearbox GA6HP19Z |
| BMW 5 Series E60/E61 (2003 - 2010) 530i Sedan | Sedan | 09.03 to 03.10 | For ZF automatic gearbox GA6HP19Z |
| BMW 5 Series E60/E61 (2003 - 2010) 530i Touring | Touring | 09.03 to 03.10 | For ZF automatic gearbox GA6HP19Z |
| BMW 5 Series E60/E61 (2003 - 2010) 530d Sedan | Sedan | 07.03 to 03.10 | For ZF automatic gearbox GA6HP19Z |
| BMW 5 Series E60/E61 (2003 - 2010) 540i Sedan | Sedan | 07.05 to 03.10 | For ZF automatic gearbox GA6HP19Z |
| BMW 5 Series E60/E61 (2003 - 2010) 545i Sedan | Sedan | 09.03 to 06.05 | For ZF automatic gearbox GA6HP19Z |
| BMW 5 Series E60/E61 (2003 - 2010) 550i Sedan | Sedan | 07.05 to 03.10 | For ZF automatic gearbox GA6HP19Z |
| Model | Body | Build | Fitment notes |
|---|---|---|---|
| BMW 6 Series E63/E64 (2004 - 2010) 645i All | All | 01.04 to 08.05 | For ZF automatic gearbox GA6HP19Z |
| BMW 6 Series E63/E64 (2004 - 2010) 650i All | All | 07.05 to 07.10 | For ZF automatic gearbox GA6HP19Z |
| Model | Body | Build | Fitment notes |
|---|---|---|---|
| BMW 7 Series E65/E66 (2002 - 2008) 735i Sedan | Sedan | 11.01 to 02.05 | For ZF automatic gearbox GA6HP19Z |
| BMW 7 Series E65/E66 (2002 - 2008) 740i Sedan | Sedan | 06.04 to 07.08 | For ZF automatic gearbox GA6HP19Z |
| BMW 7 Series E65/E66 (2002 - 2008) 745i Sedan | Sedan | 11.01 to 02.05 | For ZF automatic gearbox GA6HP19Z |
| BMW 7 Series E65/E66 (2002 - 2008) 750i Sedan | Sedan | 06.04 to 07.08 | For ZF automatic gearbox GA6HP19Z |
| BMW 7 Series E65/E66 (2002 - 2008) 760i Sedan | Sedan | 02.02 to 07.08 | For ZF automatic gearbox GA6HP19Z |
| BMW 7 Series E65/E66 (2002 - 2008) 735Li Sedan | Sedan | 11.01 to 02.05 | For ZF automatic gearbox GA6HP19Z |
| BMW 7 Series E65/E66 (2002 - 2008) 740Li Sedan | Sedan | 09.04 to 07.08 | For ZF automatic gearbox GA6HP19Z |
| BMW 7 Series E65/E66 (2002 - 2008) 745Li Sedan | Sedan | 11.01 to 02.05 | For ZF automatic gearbox GA6HP19Z |
| BMW 7 Series E65/E66 (2002 - 2008) 750Li Sedan | Sedan | 06.04 to 07.08 | For ZF automatic gearbox GA6HP19Z |
| BMW 7 Series E65/E66 (2002 - 2008) 760Li Sedan | Sedan | 02.02 to 07.08 | For ZF automatic gearbox GA6HP19Z |
| Model | Body | Build | Fitment notes |
|---|---|---|---|
| BMW Z4 E85/E86 (2003 - 2008) 2.5si All | All | 01.06 to 08.08 | For ZF automatic gearbox GA6HP19Z |
| BMW Z4 E85/E86 (2003 - 2008) 3.0si All | All | 01.06 to 08.08 | For ZF automatic gearbox GA6HP19Z |
| Model | Body | Build | Fitment notes |
|---|---|---|---|
| BMW X3 E83 (2004 - 2010) 2.0d SUV | SUV | 10.04 to 08.10 | |
| BMW X3 E83 (2004 - 2010) 3.0d SUV | SUV | 01.04 to 08.10 |
| Model | Body | Build | Fitment notes |
|---|---|---|---|
| BMW X5 E53 (2001 - 2006) 3.0i SUV | SUV | 05.00 to 09.06 | |
| BMW X5 E53 (2001 - 2006) 3.0d SUV | SUV | 05.01 to 09.06 | |
| BMW X5 E53 (2001 - 2006) 4.4i SUV | SUV | 05.00 to 09.06 | |
| BMW X5 E53 (2001 - 2006) 4.8is SUV | SUV | 04.04 to 09.06 |
| Model | Body | Build | Fitment notes |
|---|---|---|---|
| BMW X5 E70 (2007 - 2013) 3.0sd SUV | SUV | 09.07 to 02.09 | |
| BMW X5 E70 (2007 - 2013) 3.0si SUV | SUV | 02.07 to 09.08 | |
| BMW X5 E70 (2007 - 2013) 3.0d SUV | SUV | 02.07 to 09.08 | |
| BMW X5 E70 (2007 - 2013) xDrive30d SUV | SUV | 09.10 to 06.13 |
| Model | Body | Build | Fitment notes |
|---|---|---|---|
| BMW X6 E71 (2008 - 2014) xDrive30d SAC | SAC | 09.10 to 06.14 | |
| BMW X6 E71 (2008 - 2014) xDrive35i SAC | SAC | 09.08 to 06.14 | |
| BMW X6 E71 (2008 - 2014) xDrive50i SAC | SAC | 09.08 to 06.14 |
| Model | Body | Build | Fitment notes |
|---|---|---|---|
| BMW X1 E84 (2010 - 2015) sDrive18i SUV | SUV | 10.09 to 06.15 | For ZF automatic gearbox GA6HP19Z |
| BMW X1 E84 (2010 - 2015) sDrive20d SUV | SUV | From 09.10 | For ZF automatic gearbox GA6HP19Z |
| BMW X1 E84 (2010 - 2015) xDrive20d SUV | SUV | From 10.09 | |
| BMW X1 E84 (2010 - 2015) xDrive23d SUV | SUV | From 10.09 | |
| BMW X1 E84 (2010 - 2015) xDrive25i SUV | SUV | From 01.10 | |
| BMW X1 E84 (2010 - 2015) xDrive28i SUV | SUV | From 04.11 |
